Argox PA-20

Argox PA-20

• Sharp and bright color TFT QVGA display.
• Ergonomic, compact, robust and lightweight.
• Bluetooth technology.
• 1.2m(4 ft.) drop resistance.
• IP54 protection class.

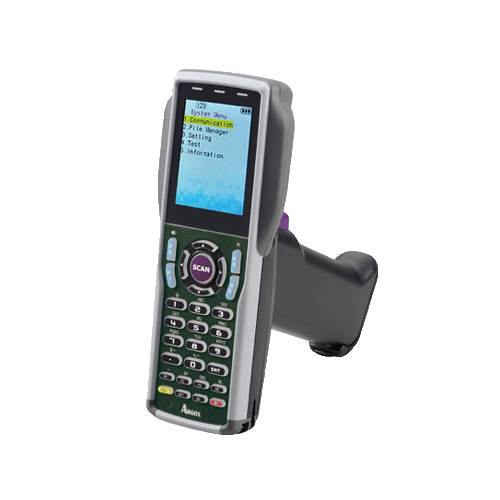

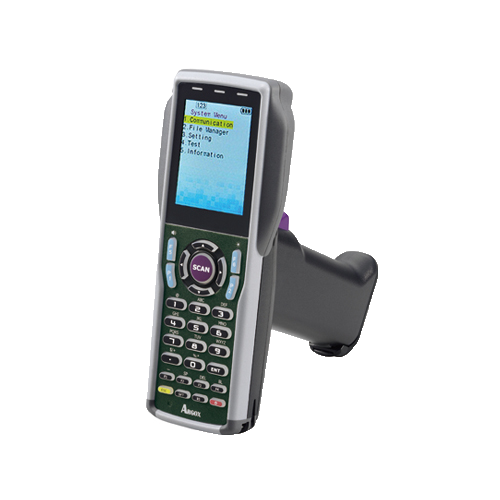

• Quick attach handle.
• Extremely long operation hours.

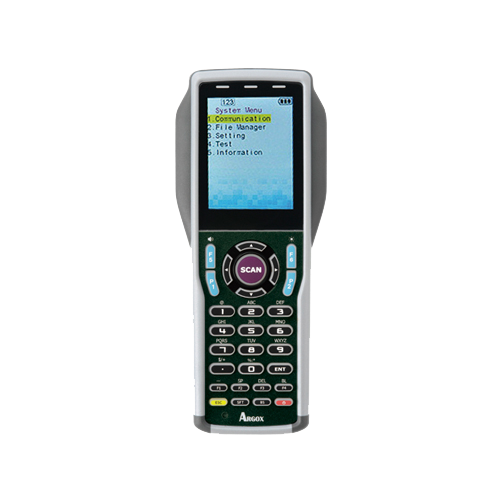

The PA-20 Portable Data Terminal (PDT) is a high-performance wireless handheld mobile data capture device that scans and stores bar code data for upload to the computer. The compact, industrial-strength PA-20 features a superior scanner, large 16 MB RAM memory, a color display, and bold exterior design. Bluetooth capability allows wireless communication with peripheral devices within 30 meters. The PA-20 also supports RS-232 for transmitting data to a variety of devices, as well as USB for high-speed transmission.

Ideal for intensive commercial uses, the PA-20 is shockproof, dustproof, and waterproof in compliance with IP 54. The ergonomic, professional keypad and pistol grip are made of wear-resistant rubber and are comfortable to operate. For dark environments, the keypad uses a white backlight, and the PA-20 also vibrates for scanning confirmation in noisy or noise-sensitive environments. A 2.4-inch color LCD screen supports 12-, 16- and 24-dot fonts as well as multiple languages. The PA-20 offers tough connections via Pogo Pin and Cradle and high-quality cable connections, so broken connections are not an issue. Rechargeable standard and pistol grip batteries provide extended battery life for the longer scanning operation. Accessories include a single cradle, four-slot cradle, holster with belt loop, charging and communication cable.




 External I/O Interface USB / RS-232
 Expansion Slot N/A
 OS Argox Proprietary
 CPU ARM9 Core 533MHz
 Display 2.4” LCD TFT Transmissive, 320 x 240 QVGA 65K colors
 Indicators LED, Beeper and Vibrator
 Keypad 29 keys
 Terminal Dimensions 169.0mm(L) x 70.1mm(W) x 34.0mm(H)
 Terminal Weight 235g(battery included)
 Image Sensor PA-20/PA-2010: CCD. PA-21/PA-2110: Laser
 Decode Capability PA-20/PA-2010: Chinese 2/5, Codablock F, Code 11, Code 49, Discrete 2 of 5 (DTF), EAN-13, IATA 2/5, Industrial 2/5, Matrix 2/5, Postnet, Standard 2 of 5, TRI-OPTIC, UCC composite, UK plessey, UPCA, Canadian Post, Postal Code, Code-16K, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded). PA-21/PA-2110:Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, IATA 2/5, Industrial 2/5, Interleved 2/5, ISBT-128, Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, TRI-OPTIC, UK plessey, UPCA, UPCE, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited).
 Resolution 5mil
 Depth of Field PA-20/PA-2010: Code 39 5mil 99-128mm, Code 39 10mil 53-287mm, Code 39 13mil 64-410mm, Code 39 20mil 85-620mm, EAN 13mil 56-320mm. PA-21/PA-2110: Code 39 5mil 70-85mm, Code 39 10mil 53-200mm, Code 39 13mil 50-245mm, Code 39 20mil 80-295mm, EAN 13mil 65-245mm.
 Scan Rate 400 scans/second
 Communication Interface USB, RS-232
 Operating Temperature -10°C ~ 60°C / 14°F ~ 140°F
 Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F
 Humidity Operating: Non-condensed 90%
 Drop Resistance 1.2 meters to concrete(Handset), 0.9 meters to concrete(Cradle)
 Sealing IP54
 Electrostatic Discharge (+/- 15 KV) air discharge / (+/- 8 KV) direct discharge
 Software PT FileManager, ARGOX_DAEMON
 Program Language C language, basic language
 Developing Tools Architect,Software Development Kit (SDK)
 Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 5V, 3A
 Battery 1) Data collector: Rechargeable 3.7V 1950mAh Li-Polymer Battery 2) Optional Pistol Grip: Rechargeable 3.7 V 5000mAh, li-ion Battery

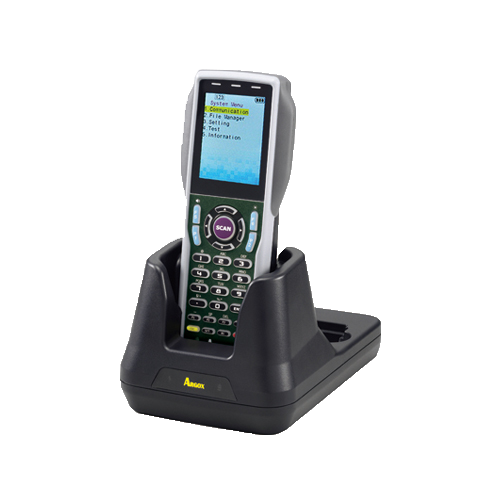

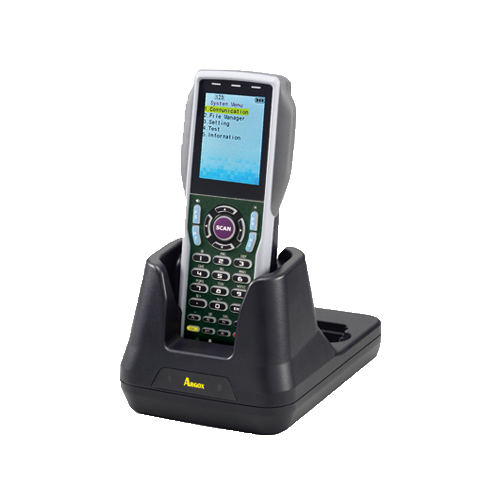

 Cradle Device cradle with single slot battery compartment, Four-slot charger
 Accessory ● Communication and Charging Cables: Seriel/USB cable with charging ● Battery Charger: Device cradle with single slot battery compartment, Four-slot charger ● Other: Pistol Grip, Carry case
 Wireless Communications PA-2010/PA-2110 WPAN: Bluetooth Class 2, version 2.0
 Agency Listing CE, FCC, RoHS, WEEE
 Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
