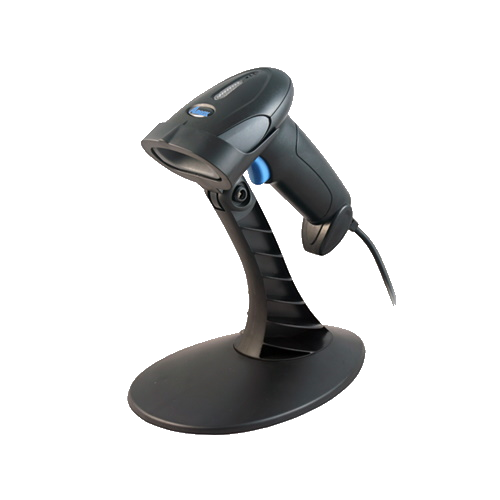

Argox AS8050

Argox AS8050


• Fast 1D barcode eading.
• Up to 3mil reading capacity.
• Easy to read screen barcodes.



New technology and powerful scan engine with excellent performance highly increase the reading speed. High density resolution that can capture the code on 3mil barcode such as jewelry tag. Support all type of electronic device, such as mobile phone, tablet and LCD display.




 Light Source 632nm visible red LED
 Image Sensor 2500 pixels CCD Linear Sensor
 Depth of Field 3mil Code39 30mm ~ 100mm, 5mil Code39 30mm ~ 150mm, 12mil Code39 35mm ~ 210mm, 13mil Code39 68mm~ 280mm, 13mil EAN13 48mm ~ 270mm, 34mil Code39 190mm ~ 700mm
 Resolution 3mil (Code39)
 Print Contrast Ratio (minimum) 25%
 Decode Capability 1-D Symbologies:EAN-8, EAN-13, UPC-A, UPC-E, CODABAR (NW7), Code 39, Code 93, INTERLEAVED 2 of 5, STANDARD 2 of 5, MATRIX 2 of 5, Code 128, EAN/UCC 128, Code 11, Chinese post
 Wireless Communications N/A
 Communication Interface USB HID, USB V-Com
 Scan Indicators LED, Beeper
 Scanner Dimensions 97mm x 67mm x 165mm
 Cradle Dimensions N/A
 Input Voltage 5V+/- 5%
 Operating Temperature -10˚C to 50˚C (14˚F to 122˚F)
 Storage -30˚C to 70˚C (-22˚F to 158˚F)
 Humidity 5% to 95% related humidity, non-condensing
 Ambient Light Up to 80,000 lux
 Battery N/A
 Drop Resistance 1.5m
 Programming Method Manual (reading special barcode)
 Operation Mode Trigger mode, Auto sensing mode
 Sealing IP42
 Program Upgrade Enabled by build-in flash memory
 Cable Length 1.8m
 Scanner Stand Standard
 Power Supply N/A
 Agency Listing CE, FCC, BSMI
 Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
