Argox iX6-250

Argox iX6-250

• Stable and Durable
• Media Shaft Keep Printing Smoothly
• Automatic Language Emulation Detection
• Indented Interface

Category:

Description

To enhance functions/features and make consistent of printer hardware platform on current 6” model printer, Argox releases the new product iX6-250 to replace the well-known G-6000 printer. By continuing the mechanical design and hardware specifications of the iX series printer, the operability and the lack of hardware support/connection interfaces of the original G-6000 have been greatly improved, which make the new iX6 series more competitive in the market.

Brand

Argox

Specifications

Printing Method Direct Thermal & Thermal Transfer
  Printing Resolution 203 dpi(8 dots/mm)
  Printing Speed Max. 6 ips
  Printing Length Max. 100”(2540mm)
  Printing Width Max. 6.6”(168mm)
  Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32 GB) (FAT32 format)
  CPU Type 32 bit RISC microprocessor
  Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)

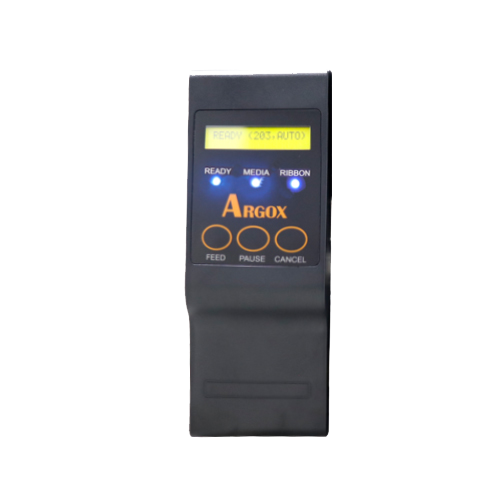

  Operation Interface LED Indicator x 3, Button(Feed) x 3, LCD Display x 1

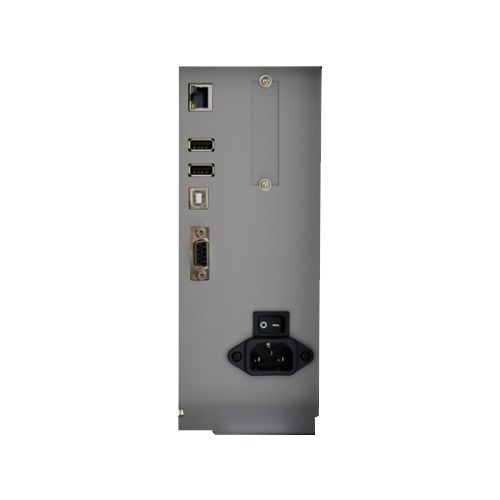

  Communication Interface USB device, RS-232, Ethernet, USB host x 2
  Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
  Wireless Security N/A
  1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
  2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
  Graphics PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI
  Emulation PPLA, PPLB, PPLZ
  Software-label Editing BarTender® from Seaguall Scientific
Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
  Windows Compatibility N/A
  Software-utility Printer Tool
  Driver tools Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10)
Argox Linux Printer Driver
Argox macOS Printer Driver
Argox RPi Printer Driver
  Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
  Media Max. width: 6.8” (173mm)
Min. width: 2” (50.8 mm)
Thickness:0.0025”~0.01” (0.0635mm~0.254mm)
8.26”(210mm) OD on a 3”(76mm) ID core
7”(177.8mm) OD on a 1.5”(38mm) ID core
  Ribbon Width: 2”~6.78”(50.8 mm~172 mm)
Length: max 450m Wax, 450m Semi-Resin
Max OD 3.2” (81.3 mm)
Core size ID 1” (25.4 mm)
Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in)
  Drop Resistance N/A
  Printer Dimensions W 318mm x H 262mm x D 470 mm
  Printer Weight 14 kgs
  Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
  Battery N/A
  Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 25% ~ 85% non-condensing
Storage Temperature: -4°F~122°F (-20°C~50°C)
  Real Time Clock N/A
  Optional Items Cutter, Peeler, WLAN, GPIO, Parallel module, Rewinder kit
  Agency Listing CE, CB/LVD, FCC, ICES, BSMI, CCC
  Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
