Argox iX4-350

Argox iX4-350

• For high volume printing.
• Printing speed upgrade to 6 inches/sec.
• Multiple interfaces.

Category:

Description

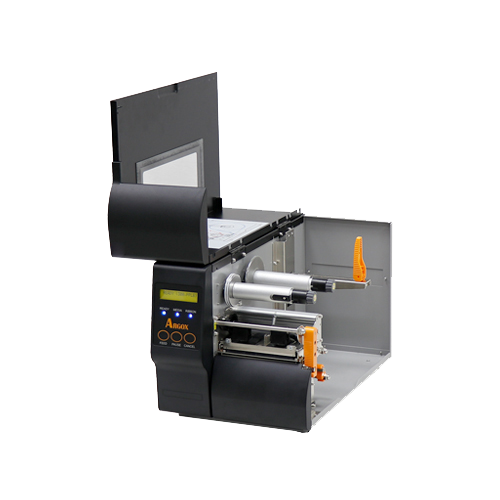

With new mechanical design, iX4 series supports a large 8.26 inch outer diameter label roll and up to 450 meter ribbon capacity. Featuring iX4-350 6ips print speed, even print with the highest speed, it can still maintain the perfect print quality. The iX4 series has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.

Brand

Argox

Specifications

Printing Method Direct Thermal & Thermal Transfer
  Printing Resolution 300 dpi(12 dots/mm)
  Printing Speed Max. 6 ips
  Printing Length Max. 50”(1270mm)
  Printing Width Max. 4.08”(103.7 mm)
  Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
  CPU Type 32 bit RISC microprocessor
  Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)

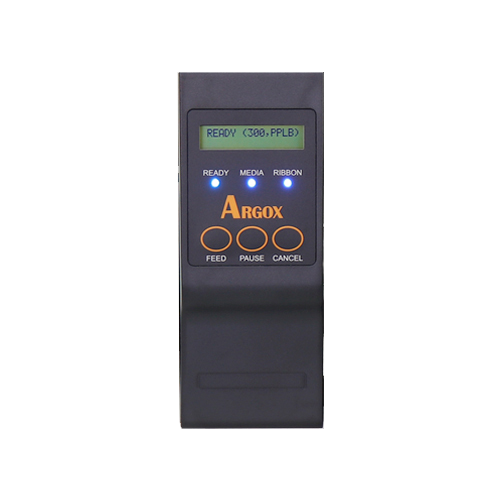

  Operation Interface LED indicator x 3, Button x 3, LCD Display x 1

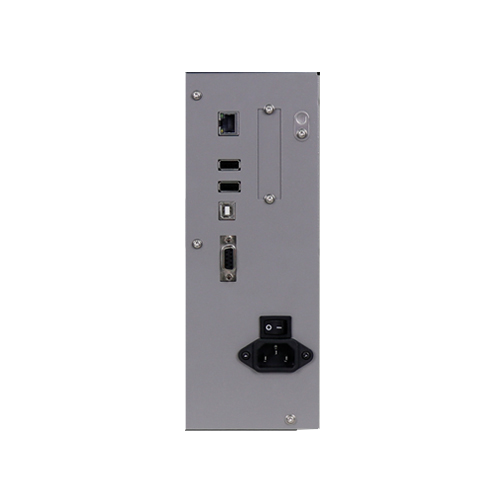

  Communication Interface USB device, RS-232, Ethernet, USB host x 2
  Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
  Wireless Security N/A
  1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
  2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
  Graphics PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI
  Emulation PPLA, PPLB, PPLZ
  Software-label Editing BarTender® from Seaguall Scientific
Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
  Windows Compatibility N/A
  Software-utility Printer Tool
  Driver tools Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10)
Argox Linux Printer Driver
Argox macOS Printer Driver
Argox RPi Printer Driver
  Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
  Media Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core
  Ribbon Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length: 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
  Drop Resistance N/A
  Printer Dimensions W 257 mm x H 263 mm x D 432 mm
  Printer Weight 13 kgs
  Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
  Battery N/A
  Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing
Storage Temperature: -4°F~122°F (-20°C~50°C)
  Real Time Clock Standard
  Optional Items Guillotine cutter, Rotary cutter, Peeler, Rewinder kit, WLAN, GPIO, Parallel module, External rewinder
  Agency Listing CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI
  Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

Brochure

Argox iX4-350 Brochure
